SmartHSL Architecture and Expected Performances

The global SmartHSL architecture is presented figure 7. On this figure, the data-path from the host to the network is shown with dark gray.

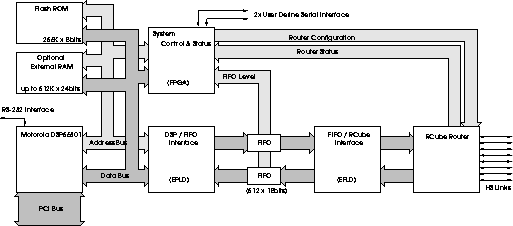

**Figure 7:** SmartHSL Architecture
$\begin{figure} \center \leavevmode \epsfysize=5cm \epsfbox{smartarc.eps}\end{figure}$
