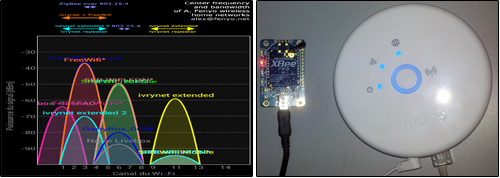

Adding light control to my home automation system

Integrating my new Philips HUE light bulbs in my home automation system, the story.
Could also be subtitled "How to find the best carrier frequency to avoid collisions when simultaneously downloading a web page and switching the light on" !!!
Click here or on the following pictures to see how it works:

IP phone to analog phone interface circuit

At work, people usually do not get an analog phone line anymore since numeric or IP phones appeared.
Click here or on the following picture to see how to connect your old analog device (modem, wireless DECT phone, Minitel) to your IP phone:

Low cost HF signal generator

I had no money to buy this state-of-the-art DDS function generator that goes up to 20 MHz, to test my HF amplifier. So, I used a few simple discrete analog components to get a signal at 20 MHz, using only two BFR96TS NPN RF transistors, 7 capacitors, 3 coils and a few resistors. Click here to get the whole story.

Shuting down and restarting a whole computer room at once : the FenyoBox (TM)

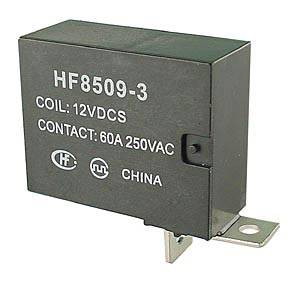

A few years ago, I had to manage a dozen of servers running in a room where the air conditionning system used to stop frequently... During each of these incidents, the temperature was going up about to 60 degrees in 10 minutes. So, I decided to build a little box able to stop the big UPS. For this to be done, I needed to drive this double-coil 60 Ampere relay :

The command part of the box is based on a microcontroller (Microchip PIC16F876) connected to a modem through a serial port (thanks to the well-known MAX232N, a +5V-powered RS-232 driver). The power part for each coil is made of a very low-cost transistor (2N2369A) driving a standard opto-coupler (CNY17) with a 2 Watt ceramic resistor in series, to get a sufficient output current. The output of the opto-coupler drives the coil.

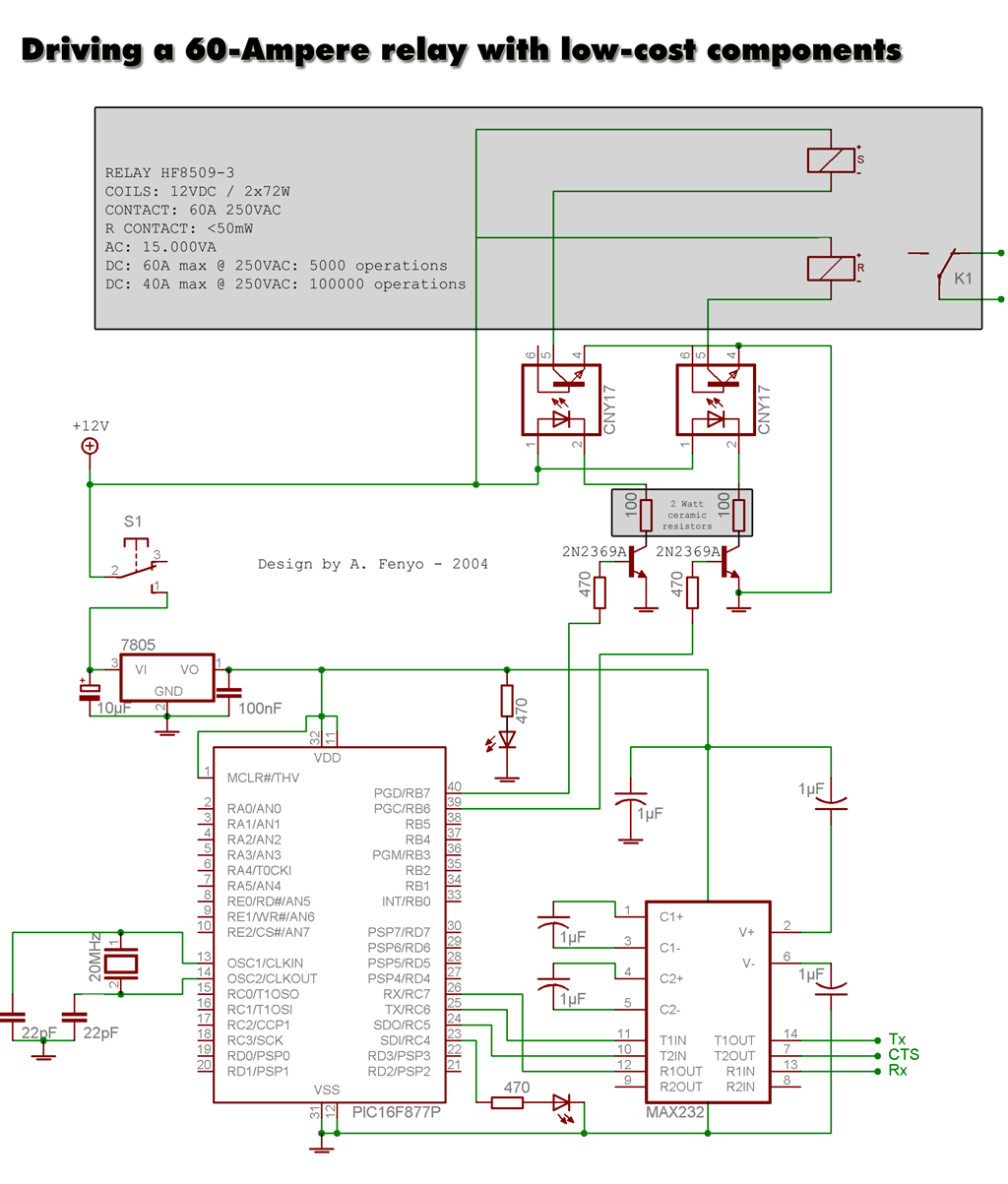

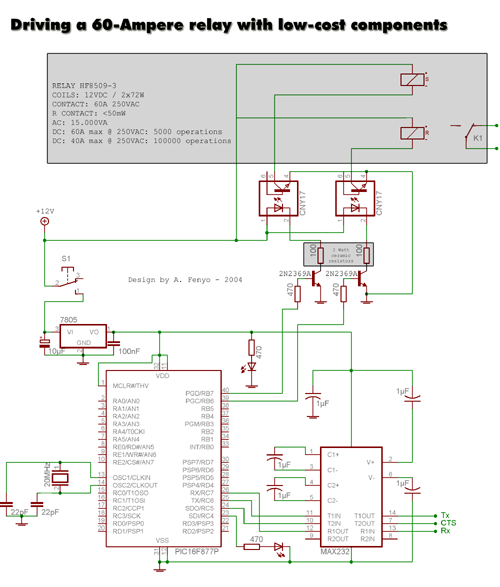

Here are the schematics:

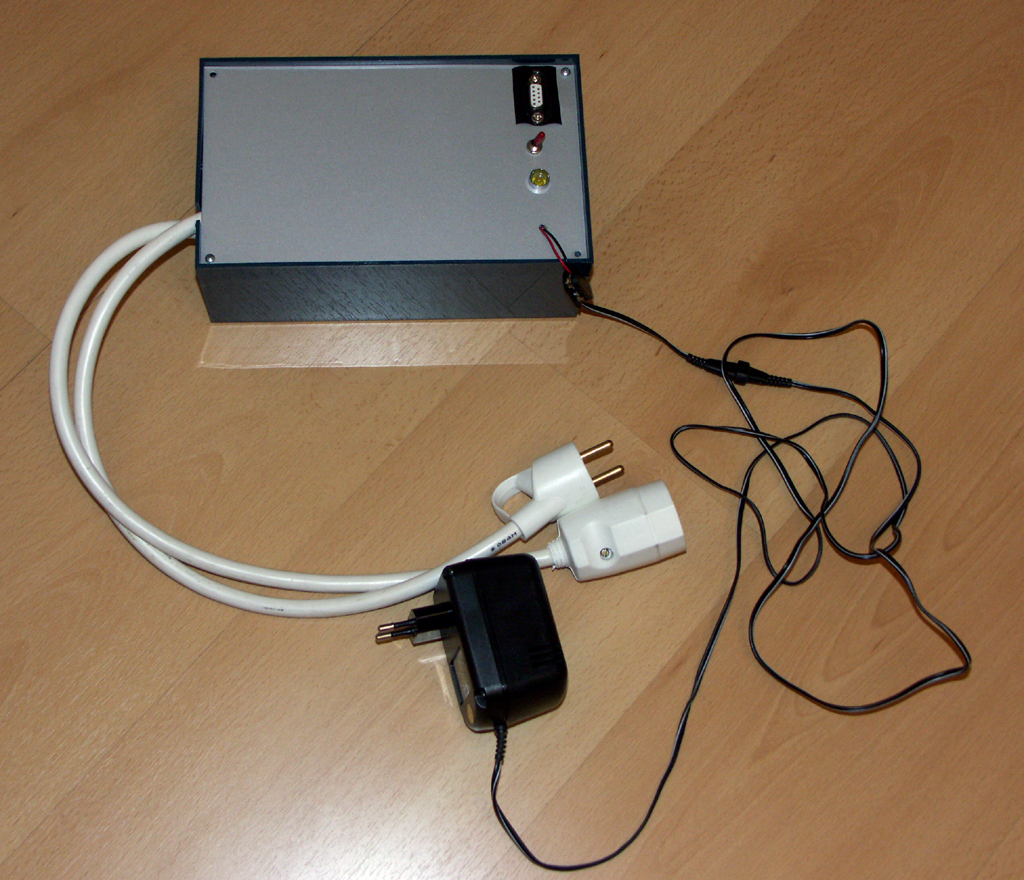

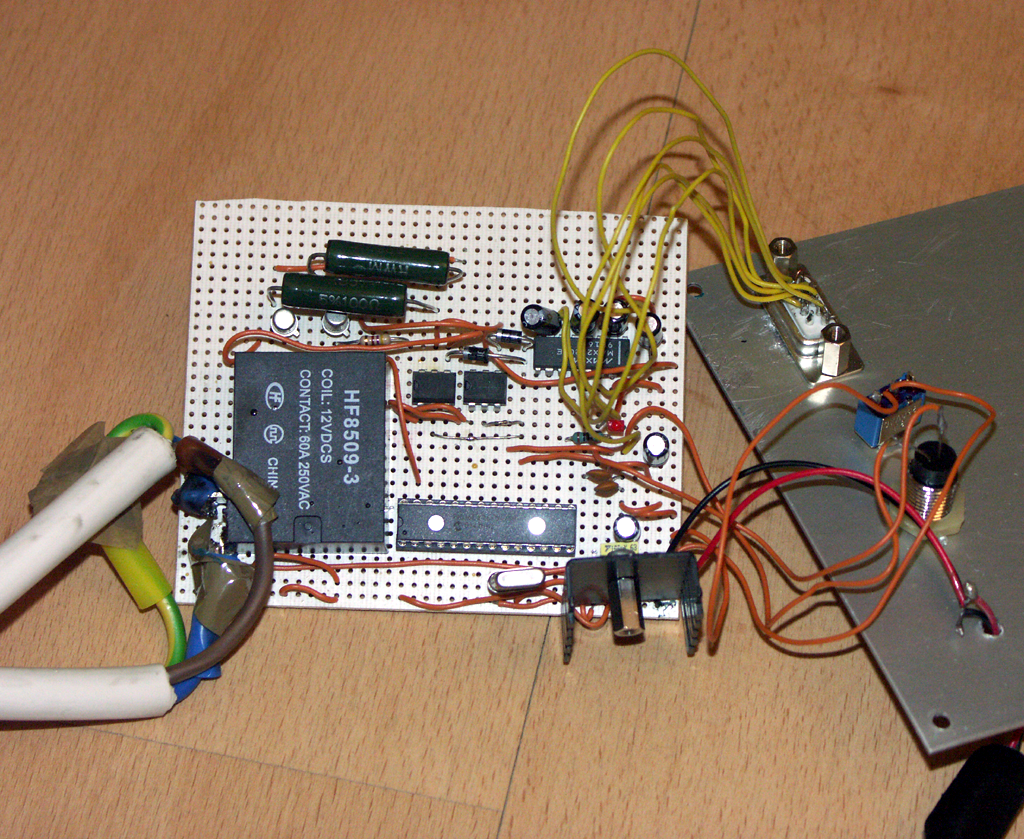

Here is the box (inside and outside):

The assembler code for the PIC is available here.

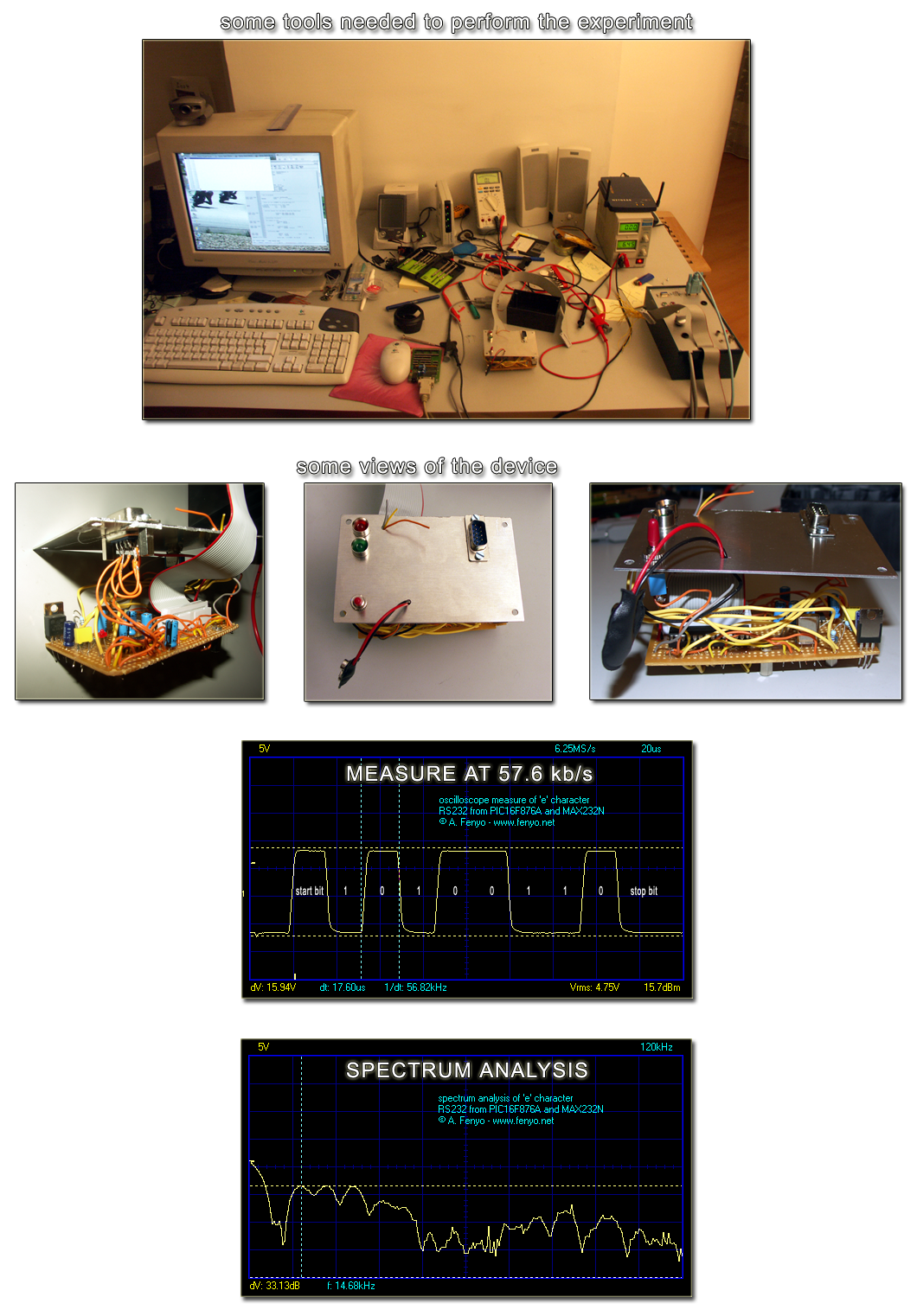

Analysis of the RS-232-C serial line output from a PIC 16F876A linked with a MAX232N

Here are the samples captured with a digital oscilloscope :

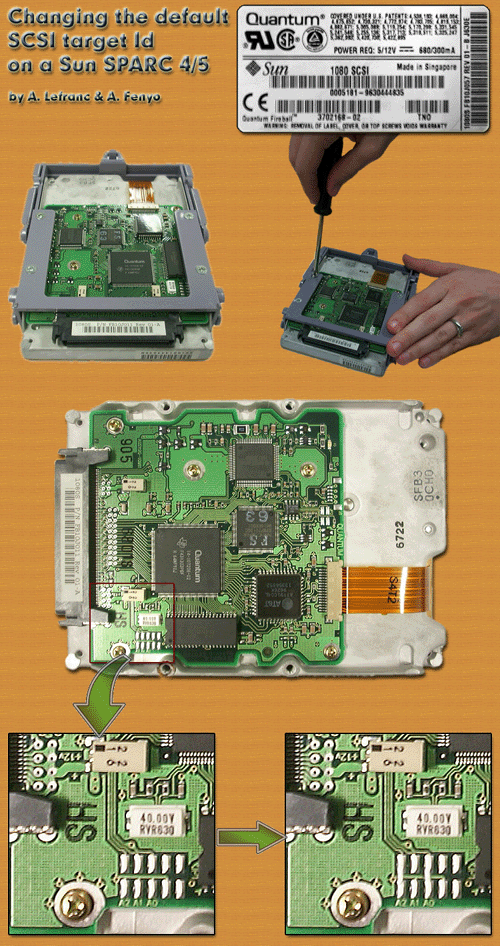

Changing the SCSI target ID of a disk from a Sun SPARC station 4 or 5
