PCI Address and Data bus


\begin{mydescription}

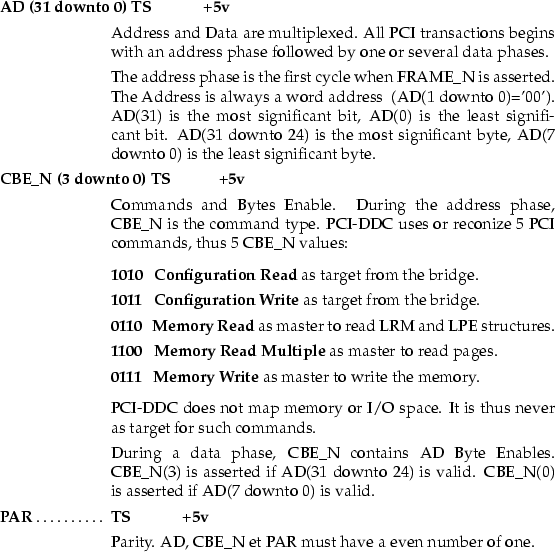

\item[AD~(31 downto 0)]\makebox[1.5cm][l]{\bf TS} \makebox...
 ...}

 Parity. AD, CBE\_N et PAR must have a even number of one.\end{mydescription}
