Configuration and status ports

Those signals allows the software to configure RCUBE and to get its link status. They may be used for another component so long it respects PCI-DDC conditions.

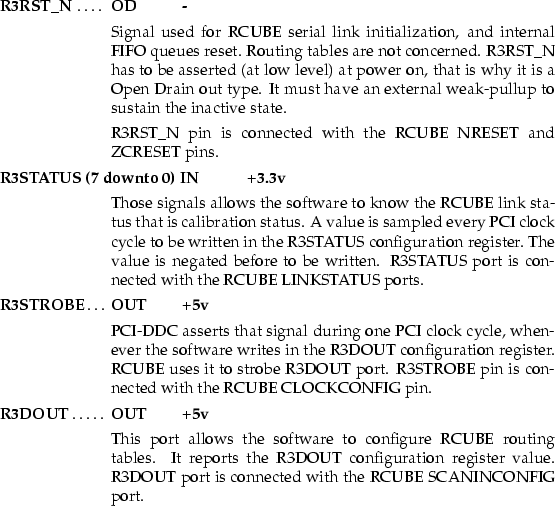

\begin{mydescription} \item[R3RST\_N] \makebox[1.5cm][l]{\bf OD} \makebox[1.5cm]... ... R3DOUT port is connected with the RCUBE SCANINCONFIG port. \end{mydescription}
